Create high-precision works more efficiently
To enable you to complete processing tasks more diversely, the arbor press can be adapted to multiple molds, except for the three common ones, making it more flexible for stamping, processing, and other work.

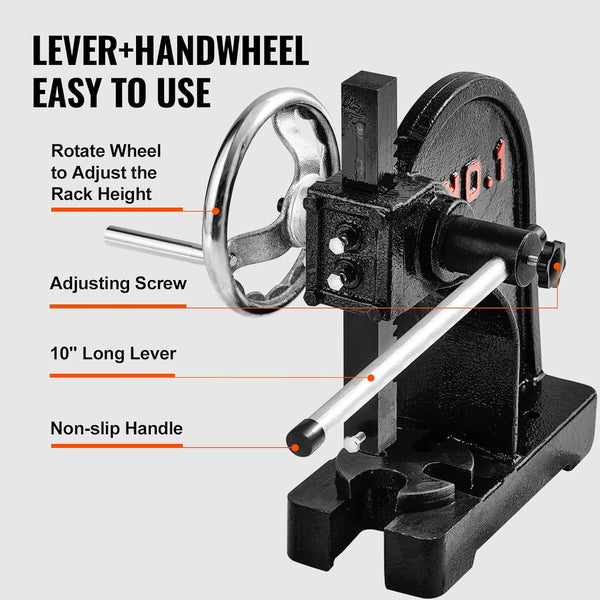

You can adjust the length of the handle by tightening the screw. After tightening the adjustable screw, the length of the handle is locked, making it not slide during operation. The longer lever allows you to complete various stamping tasks more effortlessly.
The manual arbor press is a practical choice for handmade, allowing you to perform various tasks such as stamping and drilling efficiently. A large throat space facilitates handling large items.

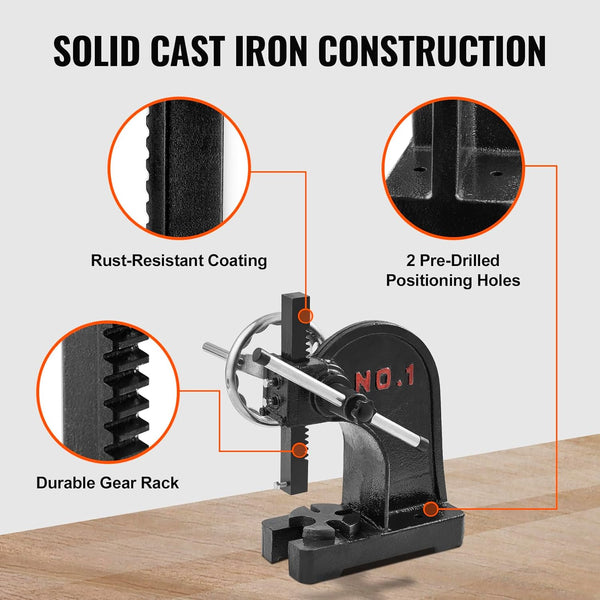

The desktop arbor press is made of selected high-quality cast iron, so long-term pressing work does not easily cause fracture and deformation problems. The surface is coated with a rust-prevention coating, which makes it resistant to rust and corrosion.
|
|
|
|
|
|
|---|---|---|---|---|---|
| 0.5 Ton Arbor Press | 1 Ton Arbor Press | 3 Ton Arbor Press | 1 Ton Arbor Press with Handwheel | 3 Ton Arbor Press with Handwheel | |
| Customer Reviews |
26
|
83
|
21
|
20
|
7
|
| Price | $71.79 | $78.80 | $309.99 | $119.99 | $399.99 |
| Capacity | 1/2 Ton | 1 Ton | 3 Ton | 1 Ton | 3 Ton |
| Max Working Distance | 4.6" / 117 mm | 5.9" / 150 mm | 12.2" / 310 mm | 5.9" / 150 mm | 12.2" / 310 mm |
| Material | Cast Iron | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
| Ram Dimensions | 0.7" x 0.7" x 7" | 0.98" x 0.98" x 9" | / | 0.98" x 0.98" x 9" | / |
| Number of Drifts | 3 （Flat/Pointed/Round） | 3 （Flat/Pointed/Round） | 3 （Flat/Pointed/Round） | 3 （Flat/Pointed/Round） | 3 （Flat/Pointed/Round） |
Product description
1 Ton Arbor Press
Create high-precision works more efficiently
This manual press effectively helps you complete the pressing, forming, punching, cutting and other processing for materials such as metal, leather, and handicrafts. It is matched with various molds, allowing you to create high-precision works more perfectly.
Specifications
Item Model Number: APR-1
Max. Working Stroke: 5.9 inch / 150 mm
Ram Length: 8.9 inch/225 mm
Plate Diameter: 3.5 inch/90 mm
Ram Bore: 0.4 inch/10 mm
Throat Depth: 3.2 inch/81 mm
Product Size: 9.5x8.3x11.4 inch/240x210x290 mm
Net Weight: 26.01 lbs / 11.8 kg
Package Content
1 x Arbor Press
3 x Drifts
